{"id":1480723300445,"title":"Buttys Bits RHD Throttle linkage kit Splitscreen 1955-67 BB012","handle":"buttys-bits-throttle-linkage-kit-splitscreen-1955-67","description":"

This Buttys Bit Kit is a bolt on replacement of the original and a vast improvement.

This features precision laser cut arms with ball joint ends and sealed bearings on the cross shaft for a more precise smoother pedal action. With a additional spring attached to the linkage itself you will notice a vast improvement over the original set up. These fit RHD Splits from 1955 - 67.
Remove all the old parts cross shaft ,push rod from pedal and disconnect the throttle cable , then clean the 2 square lugs where the original cross shaft went through the 2 holders , the new kit fits over the 2 square lugs allowing 2 bearing carriers to hang just below the original holders (The kit has to be fitted as it comes assembled remove the mounting bolts and fit the square washer over the square lug then fit the square bearing holder over the same lug and bolt up leave loose while you set the cross shaft position then tighten up and make sure new assembly moves without rubbing or catching on any other components , then connect pedal then acc cable) , the bearings will give a far smoother feeling to your acc pedal . Also the end plates are 20mm taller than the standard setup so it allows full throttle to be achieved easier on twin carb`d hex bar setups , kit can be altered if you require less cable travel .

This kit is for a RHD bus, please ask for the LHD version if you require

","published_at":"2018-10-02T09:45:26+10:00","created_at":"2018-10-02T10:15:41+10:00","vendor":"Buttys Bits","type":"Split Screen Kombi Mechanical","tags":["accelerator","bb-012","bb012","butty","Buttys Bits","kombi","splitscreen","throttle"],"price":23500,"price_min":23500,"price_max":23500,"available":true,"price_varies":false,"compare_at_price":15146,"compare_at_price_min":15146,"compare_at_price_max":15146,"compare_at_price_varies":false,"variants":[{"id":13551694020701,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"BB012","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Buttys Bits RHD Throttle linkage kit Splitscreen 1955-67 BB012","public_title":null,"options":["Default Title"],"price":23500,"weight":1000,"compare_at_price":15146,"inventory_quantity":6,"inventory_management":"shopify","inventory_policy":"continue","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["//allaircooled.com.au/cdn/shop/products/Buttys_Bits.jpg?v=1752553179","//allaircooled.com.au/cdn/shop/products/BB-012_splitscreen.jpg?v=1752553193","//allaircooled.com.au/cdn/shop/products/BB012_Buttys_Bits.jpg?v=1752553209","//allaircooled.com.au/cdn/shop/products/Splitscreen_throttle.jpg?v=1752553228","//allaircooled.com.au/cdn/shop/products/split_screen_accelerator.jpg?v=1752553241","//allaircooled.com.au/cdn/shop/products/buttys_bits_J39590.jpg?v=1752553275","//allaircooled.com.au/cdn/shop/products/J39590.jpg?v=1752553284","//allaircooled.com.au/cdn/shop/products/kombi_accelerator.jpg?v=1752553302","//allaircooled.com.au/cdn/shop/products/www.buttysbits.com.jpg?v=1752553324"],"featured_image":"//allaircooled.com.au/cdn/shop/products/Buttys_Bits.jpg?v=1752553179","options":["Title"],"media":[{"alt":"BB012 buttys bits throttle kit buttysbits bb-012","id":942044840029,"position":1,"preview_image":{"aspect_ratio":1.386,"height":461,"width":639,"src":"//allaircooled.com.au/cdn/shop/products/Buttys_Bits.jpg?v=1752553179"},"aspect_ratio":1.386,"height":461,"media_type":"image","src":"//allaircooled.com.au/cdn/shop/products/Buttys_Bits.jpg?v=1752553179","width":639},{"alt":" buttysbits bb-012 buttys bits bb012 bb-012 accelerator throttle linkage","id":942043594845,"position":2,"preview_image":{"aspect_ratio":0.75,"height":640,"width":480,"src":"//allaircooled.com.au/cdn/shop/products/BB-012_splitscreen.jpg?v=1752553193"},"aspect_ratio":0.75,"height":640,"media_type":"image","src":"//allaircooled.com.au/cdn/shop/products/BB-012_splitscreen.jpg?v=1752553193","width":480},{"alt":"buttys bits bb012 bb-012 accelerator throttle linkage buttysbits bb-012","id":942043431005,"position":3,"preview_image":{"aspect_ratio":1.333,"height":480,"width":640,"src":"//allaircooled.com.au/cdn/shop/products/BB012_Buttys_Bits.jpg?v=1752553209"},"aspect_ratio":1.333,"height":480,"media_type":"image","src":"//allaircooled.com.au/cdn/shop/products/BB012_Buttys_Bits.jpg?v=1752553209","width":640},{"alt":"buttys bits bb012 bb-012 accelerator throttle linkage buttysbits bb-012","id":942043463773,"position":4,"preview_image":{"aspect_ratio":1.0,"height":640,"width":640,"src":"//allaircooled.com.au/cdn/shop/products/Splitscreen_throttle.jpg?v=1752553228"},"aspect_ratio":1.0,"height":640,"media_type":"image","src":"//allaircooled.com.au/cdn/shop/products/Splitscreen_throttle.jpg?v=1752553228","width":640},{"alt":"buttys bits bb012 bb-012 accelerator throttle linkage buttysbits bb-012","id":942043496541,"position":5,"preview_image":{"aspect_ratio":1.0,"height":640,"width":640,"src":"//allaircooled.com.au/cdn/shop/products/split_screen_accelerator.jpg?v=1752553241"},"aspect_ratio":1.0,"height":640,"media_type":"image","src":"//allaircooled.com.au/cdn/shop/products/split_screen_accelerator.jpg?v=1752553241","width":640},{"alt":"buttys bits bb012 bb-012 accelerator throttle linkage buttysbits bb-012","id":942043529309,"position":6,"preview_image":{"aspect_ratio":0.75,"height":640,"width":480,"src":"//allaircooled.com.au/cdn/shop/products/buttys_bits_J39590.jpg?v=1752553275"},"aspect_ratio":0.75,"height":640,"media_type":"image","src":"//allaircooled.com.au/cdn/shop/products/buttys_bits_J39590.jpg?v=1752553275","width":480},{"alt":"buttys bits bb012 bb-012 accelerator throttle linkage buttysbits bb-012","id":942043398237,"position":7,"preview_image":{"aspect_ratio":1.333,"height":480,"width":640,"src":"//allaircooled.com.au/cdn/shop/products/J39590.jpg?v=1752553284"},"aspect_ratio":1.333,"height":480,"media_type":"image","src":"//allaircooled.com.au/cdn/shop/products/J39590.jpg?v=1752553284","width":640},{"alt":"buttys bits bb012 bb-012 accelerator throttle linkage buttysbits bb-012","id":942043562077,"position":8,"preview_image":{"aspect_ratio":0.75,"height":640,"width":480,"src":"//allaircooled.com.au/cdn/shop/products/kombi_accelerator.jpg?v=1752553302"},"aspect_ratio":0.75,"height":640,"media_type":"image","src":"//allaircooled.com.au/cdn/shop/products/kombi_accelerator.jpg?v=1752553302","width":480},{"alt":"buttys bits australia buttysbits bb-012","id":23969260896415,"position":9,"preview_image":{"aspect_ratio":1.475,"height":1201,"width":1772,"src":"//allaircooled.com.au/cdn/shop/products/www.buttysbits.com.jpg?v=1752553324"},"aspect_ratio":1.475,"height":1201,"media_type":"image","src":"//allaircooled.com.au/cdn/shop/products/www.buttysbits.com.jpg?v=1752553324","width":1772}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"

This Buttys Bit Kit is a bolt on replacement of the original and a vast improvement.

This kit is for a RHD bus, please ask for the LHD version if you require

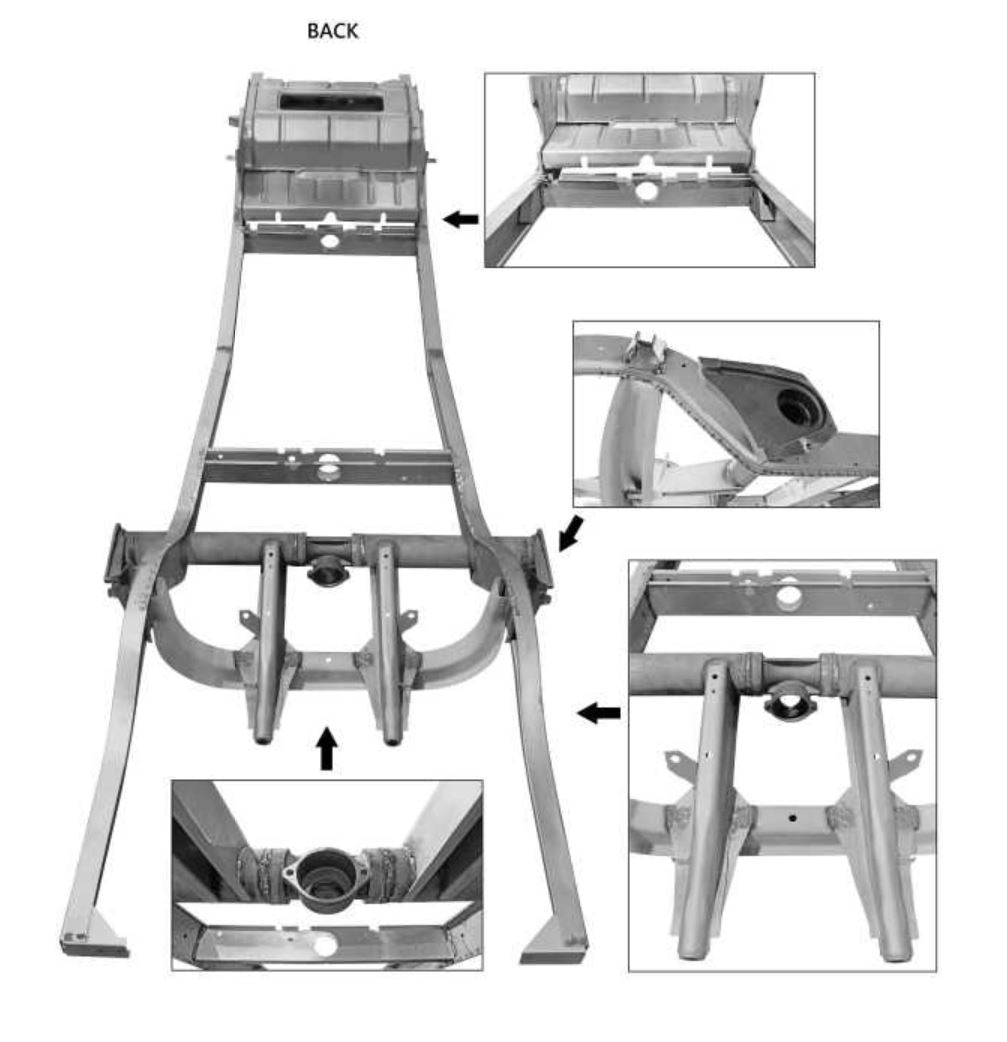

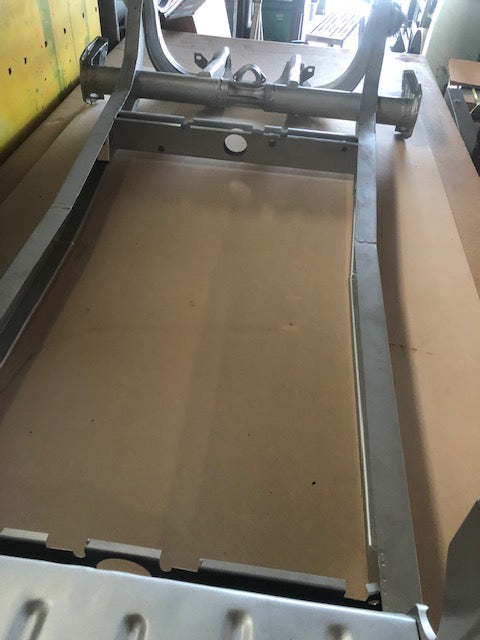

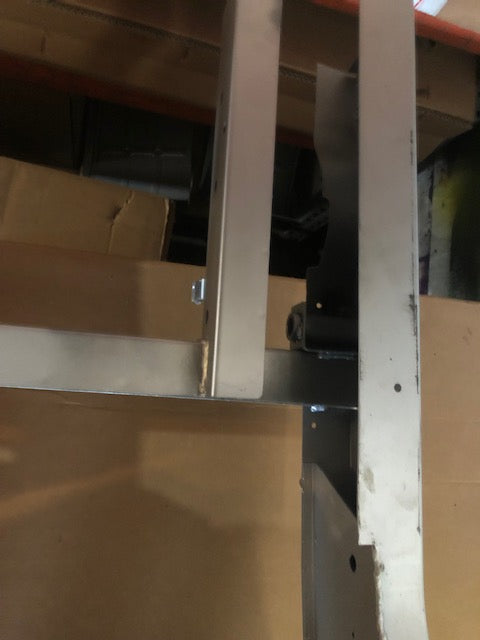

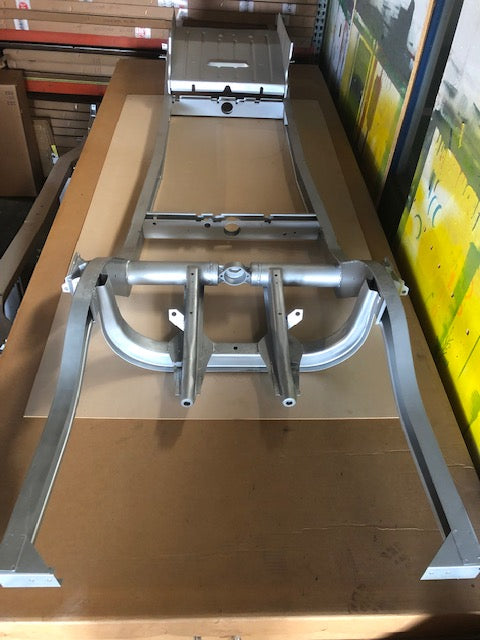

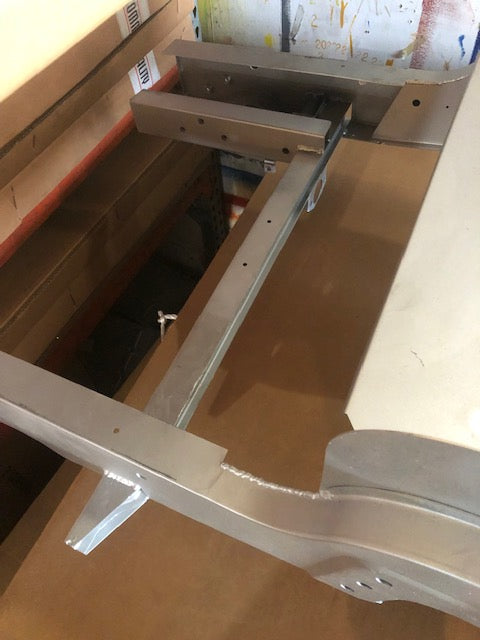

Splitscreen complete ASSEMBLED chassis RHD
